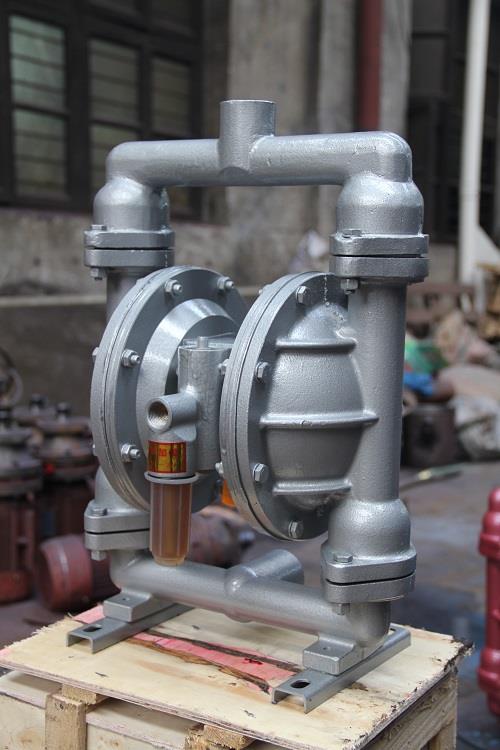

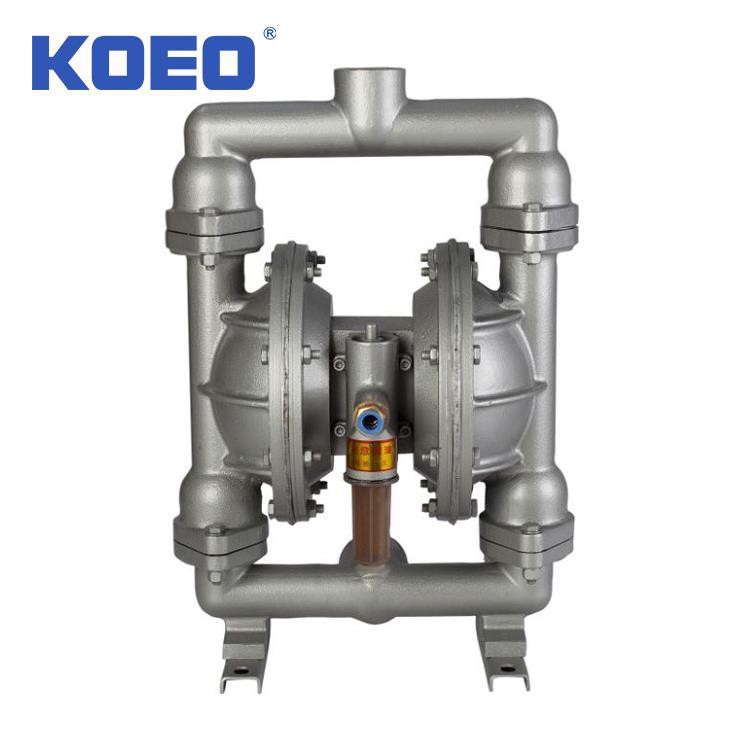

Air Operated Pneumatic Diaphragm Pump

Pneumatic Diaphragm Pump

Introduction QBY Series Pneumatic Diaphragm Pump not only can exhaust the flow liquid, but also can convey some uneasy flow media, with the merits of self-pumping pump, diving pump, shield pump, slurry pump and impurity pump etc. There are four kinds of material: cast iron, aluminum, engineering......

Introduction

QBY Series Pneumatic Diaphragm Pump not only can exhaust the flow liquid, but also can convey some uneasy flow media, with the merits of self-pumping pump, diving pump, shield pump, slurry pump and impurity pump etc.

There are four kinds of material: cast iron, aluminum, engineering plastic, and stainless steel. The diaphragm pumps according to different liquid medium, butyl rubber were used respectively to either a Buna-N rubber, Neoprene rubber, F4 fluorine rubber, F46 fluorine rubber and so on, to meet the needs of different users.



Product Details





Specification

Model

Diameter

(mm)

Max Flow

(L/min)

Suction

(m)

Max Discharge Pressure (Bar)

Max Grain Dia (mm)

Max Air Consumption (L/min)

QBY/K-8

8

16

5

6.9

1

300

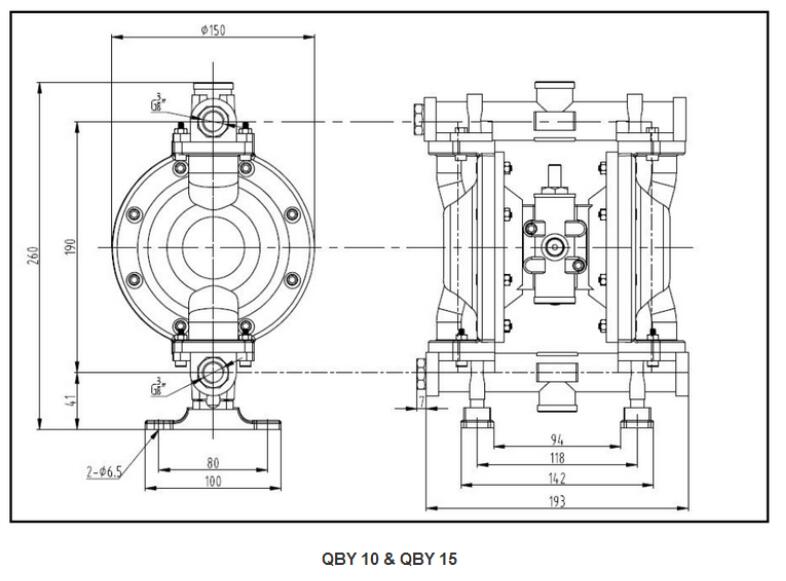

QBY/K-10/15

10/15

20

5

6.9

1

300

QBY/K-25

25

100

5

6.9

2.5

600

QBY/K-40

40

140

5

6.9

4.5

600

QBY/K-50

50

240

5

6.9

8

900

QBY/K-65

65

280

5

6.9

8

900

QBY/K-80

80

400

5

6.9

10

1500

QBY/K-100

100

480

5

6.9

10

1500


FAQ

1. How to inquiry effectively?

Please note us your needed pump body material and diaphragm material, if not clear, please tell us what fluid it uses for, also diameter, thank you.

2. Are you manufacturer?

Yes, located in Wenzhou, China.
