Air Operated Pneumatic Diaphragm Pump

Pneumatic Vacuum Diaphragm Pump

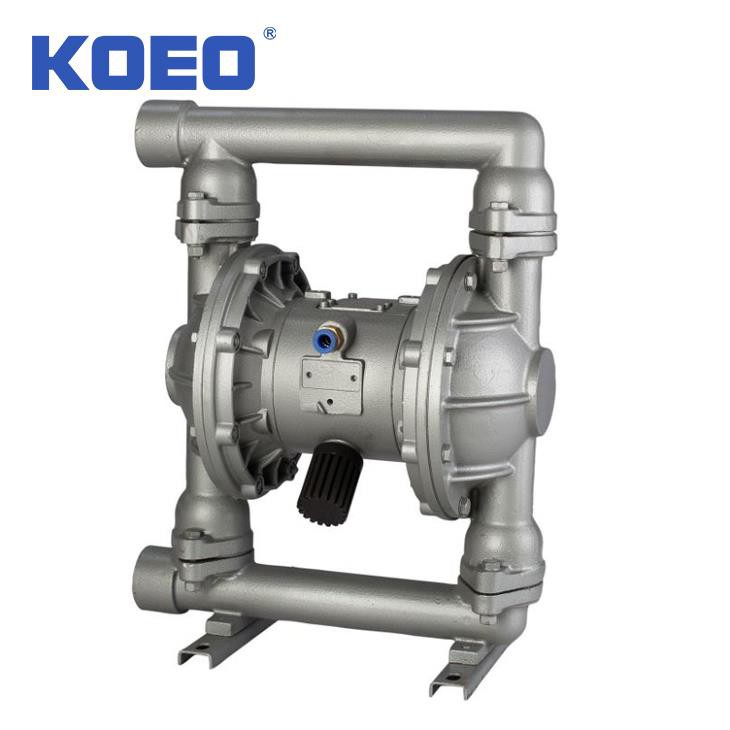

Introduction QBK Series Pneumatic Vacuum Diaphragm Pump also called Air Operated Double Diaphragm Pumps (AODD Pump) are rugged and durable self-priming, double diaphragm pumps, can handle any products that pours, from clean water to highly viscous, abrasive and chemically materials. ♦ Simple......

Introduction

QBK Series Pneumatic Vacuum Diaphragm Pump also called Air Operated Double Diaphragm Pumps (AODD Pump) are rugged and durable self-priming, double diaphragm pumps, can handle any products that pours, from clean water to highly viscous, abrasive and chemically materials.

♦ Simple structure, easy to use and maintenance, less wearing parts. It can be working under liquid and running dry as well.

♦ Suction up 5m, max discharge pressure is 7bar, max grain diameter is 10mm, max liquid viscosity is 10,000C.s.t.

♦ Material: PP, Aluminum, Cast Iron, Stainless Steel. Diaphragm material: NBR, Viton, Teflon, FEP etc.

♦ Flow rate can be controlled from zero to max flow by increasing or decreasing air pressure.


Product Details




Specification

Model

Diameter

(mm)

Max Flow

(L/min)

Suction

(m)

Max Discharge Pressure (Bar)

Max Grain Dia (mm)

Max Air Consumption (L/min)

QBY/K-8

8

16

5

6.9

1

300

QBY/K-10/15

10/15

20

5

6.9

1

300

QBY/K-25

25

100

5

6.9

2.5

600

QBY/K-40

40

140

5

6.9

4.5

600

QBY/K-50

50

240

5

6.9

8

900

QBY/K-65

65

280

5

6.9

8

900

QBY/K-80

80

400

5

6.9

10

1500

QBY/K-100

100

480

5

6.9

10

1500


Specification



Hot Tags: pneumatic vacuum diaphragm pump, China, manufacturers, suppliers, factory, buy, cheap, price, wholesale
