Oval Gear Flow Meter

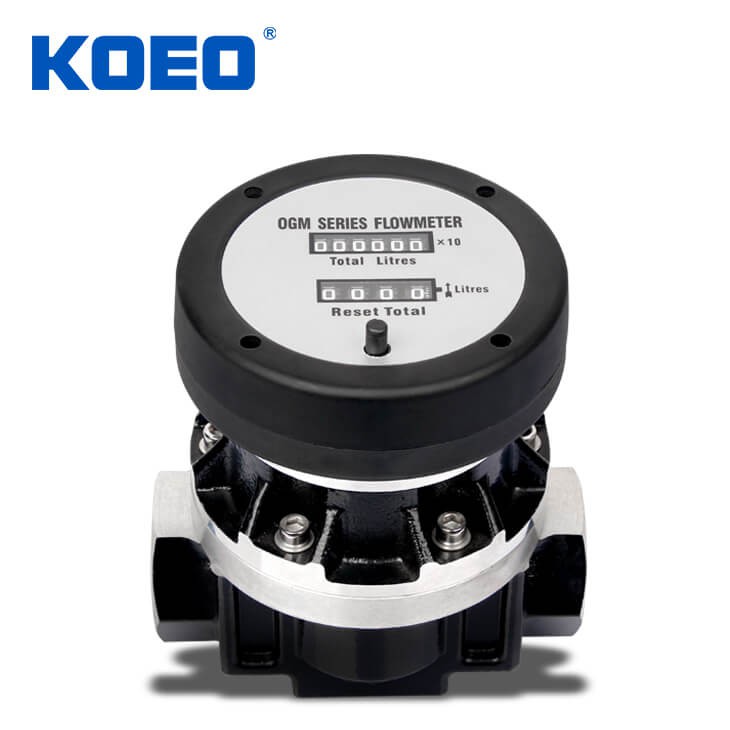

Mechanical Oval Gear Flow Meter

Introduction OGM mechanical oval gear flow meters are positive displacement flow meter with mechanical display, designed to cover a brand range of industrial fluid measurement applications. It is ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow......

Introduction

OGM mechanical oval gear flow meters are positive displacement flow meter with mechanical display, designed to cover a brand range of industrial fluid measurement applications.

It is ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, small batch size, viscous products and non-conductive liquids are all ideal uses for this meter.


Specification

Model

OGM-25

OGM-40

OGM-50

Size

1"

1   1/2"

2"

Min Flow(L/min)

20

25

30

Max Flow(L/min)

200

250

300

Accuracy

±0.5%

Repeatability

≤0.03%

Max Viscosity

1000CPS

Max Pressure

3.4Mpa

1.8Mpa

1.8Mpa



Performance

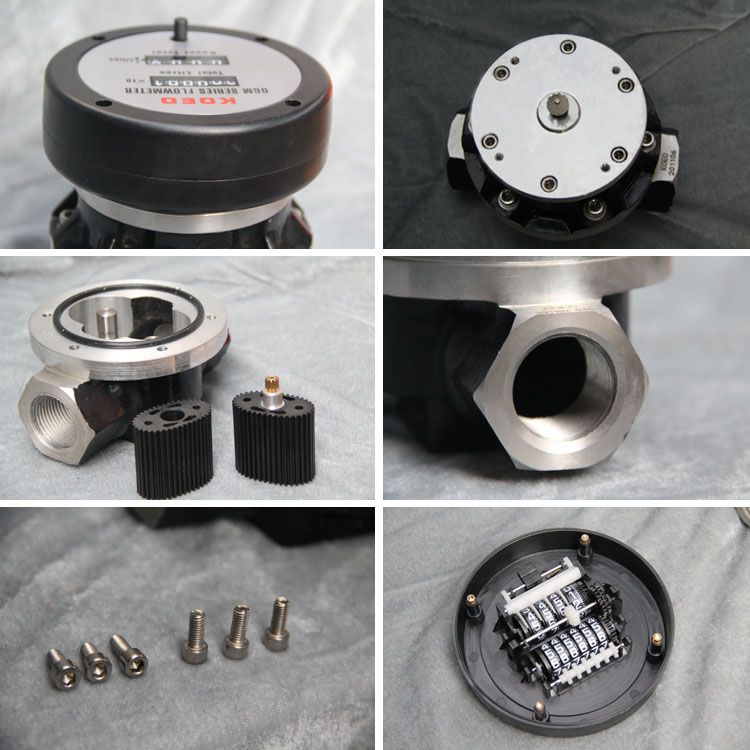

Detailed Pictures



FAQ

1. Q. What is your terms of delivery?

    A. We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.

2. Q. How long is the warranty?

    A. According to international standards, products in standard operation is 1 year(except wearable parts &seals). For wearable parts&seals, we provide small quantity free.
