Oval Gear Flow Meter

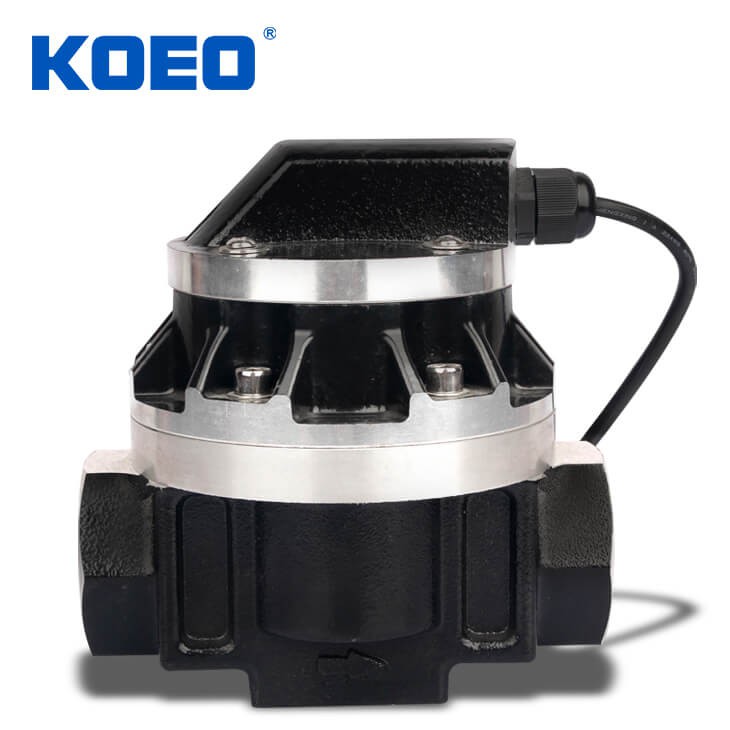

Pulse Out Oval Gear Flowmeter

Introduction OGM aluminum pulse out oval gear flowmeter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability, usually 5v, could customize 12v, 24v etc, has hall sensor and reed switch option. Specification Hall sensor and reed switch......

Introduction

OGM aluminum pulse out oval gear flowmeter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability, usually 5v, could customize 12v, 24v etc, has hall sensor and reed switch option.


Specification

Model

OGM-25P

OGM-40P

OGM-50P

Size

1’’

1   1/2’’

2’’

Min Flow(L/min)

20

25

30

Max Flow(L/min)

200

250

300

Accuracy

±0.5%

Repeatability

≤0.03%



Max Viscosity

1000CPS



Max Pressure

3.4Mpa

1.8Mpa

1.8Mpa



Hall sensor and reed switch

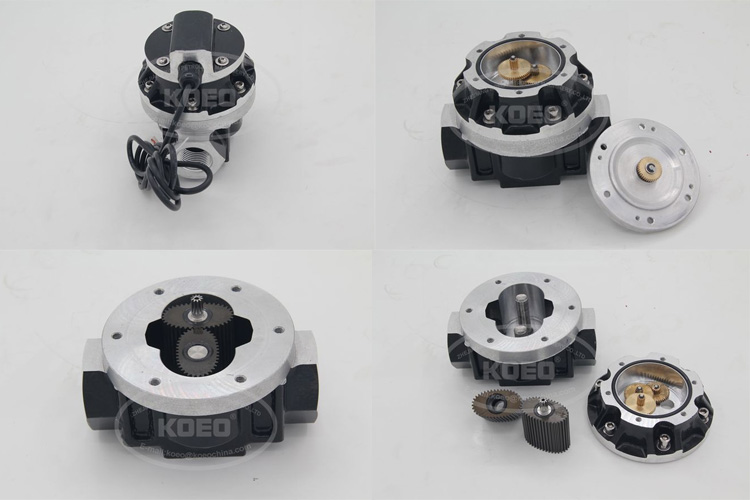

Detailed Pictures




FAQ

1. Q. Can I get a sample to check your quality?

    A. After price confirmation, you can require for samples to check our quality.
        If you need the samples, we will charge for the sample cost .But the sample cost can be refundable from future orders.

2. Q. What is Payment?

    A. T/T, Western Union, Paypal, Moneygram, Escrow. For LC, please confirm with us with exact order.
