Flow Meter

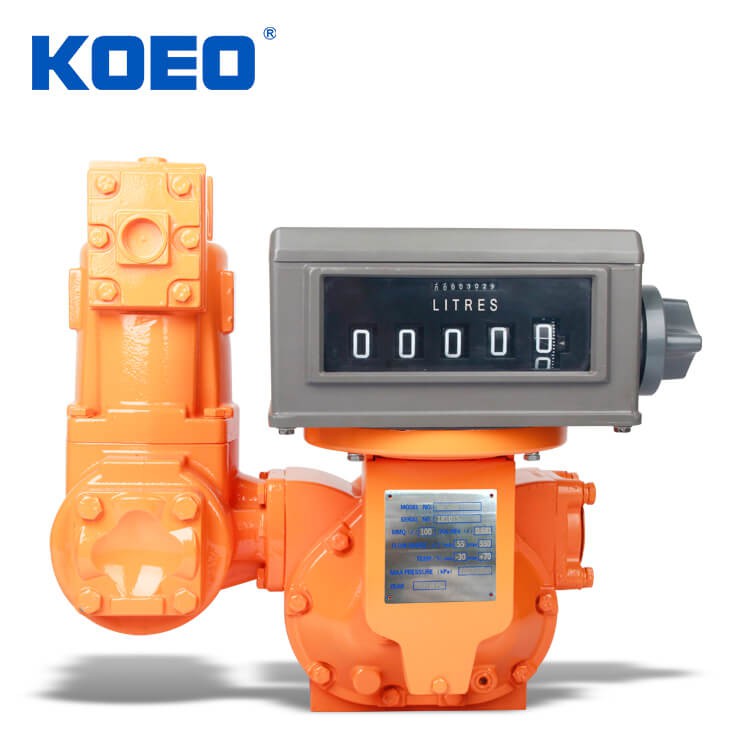

Positive Displacement Flowmeter

Positive Displacement Flowmeter Features l Robust positive displacement mechanical design l Low pressure loss, long service life l Calibrator adjustable to 0.2% custody accuracy l Material: aluminum, viton seal, veeder-root register in gallons and liters l Max pressure to 10 bar l Max......

Positive Displacement Flowmeter Features

l  Robust positive displacement mechanical design

l  Low pressure loss, long service life

l  Calibrator adjustable to 0.2% custody accuracy

l  Material: aluminum, viton seal, veeder-root register in gallons and liters

l  Max pressure to 10 bar

l  Max temperature 80℃

l  Sizes range from 40mm to 100mm



Specification

Model

M-40

M-50

M-80

M-100

Size

40mm/1 1/2"

50mm/2"

80mm/3"

100mm/4"

Flow Range

25-250L/min

38-380L/min

75-750L/min

130-1300L/min

Volume per   Revolution

0.309L

0.681L

1.839L

5.102L

Working   Temperature

-40°C~71°C

Max Pressure

10bar/150PSI

Accuracy

±0.2%

Repeatability

≤0.05%

Measurement

Litre/Gallon

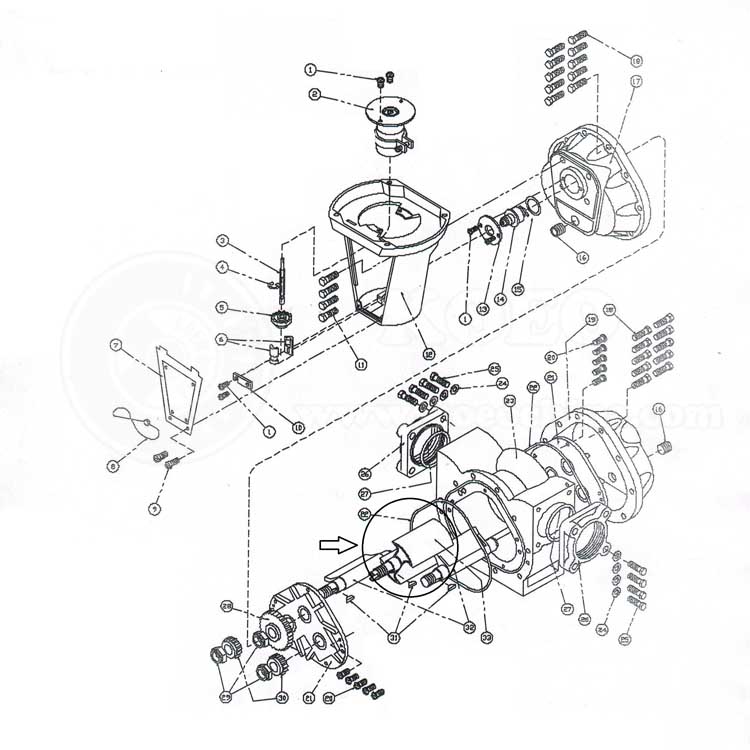

Construction

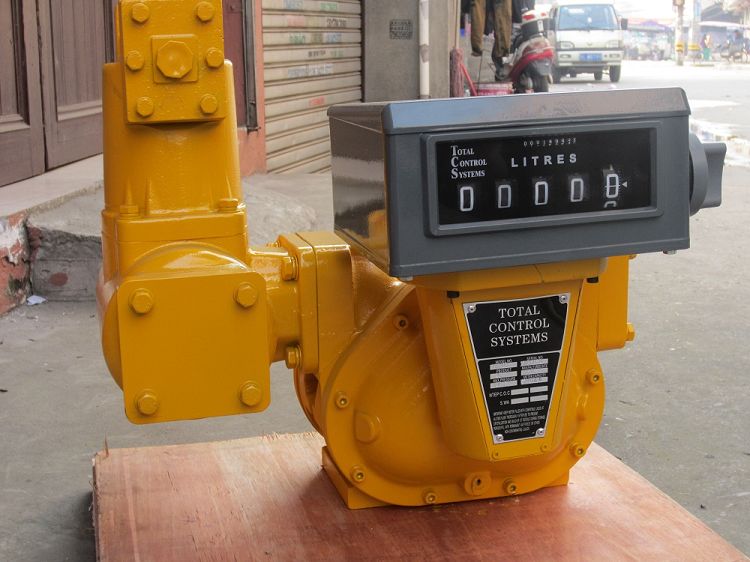

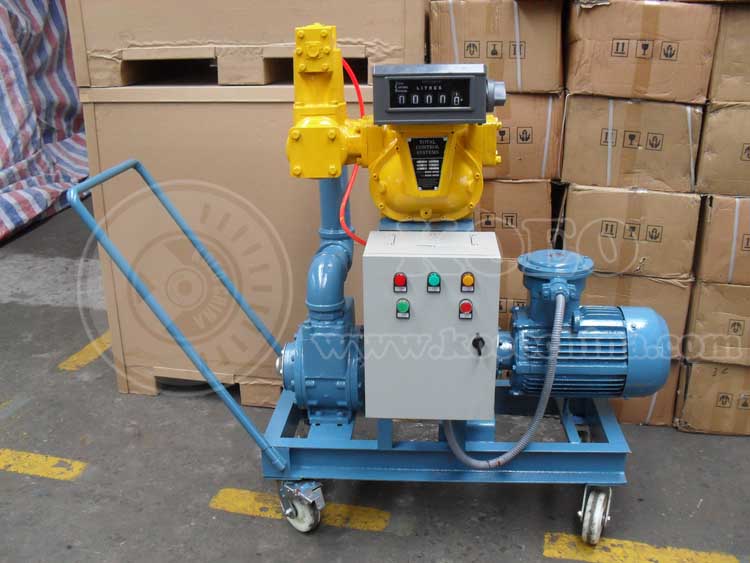

Products in Real






FAQ

1. Q. What is your terms of delivery?

    A. We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.

2. Q. How long is the warranty?

    A. According to international standards, products in standard operation is 1 year(except wearable parts &seals). For wearable parts&seals, we provide small quantity free.
