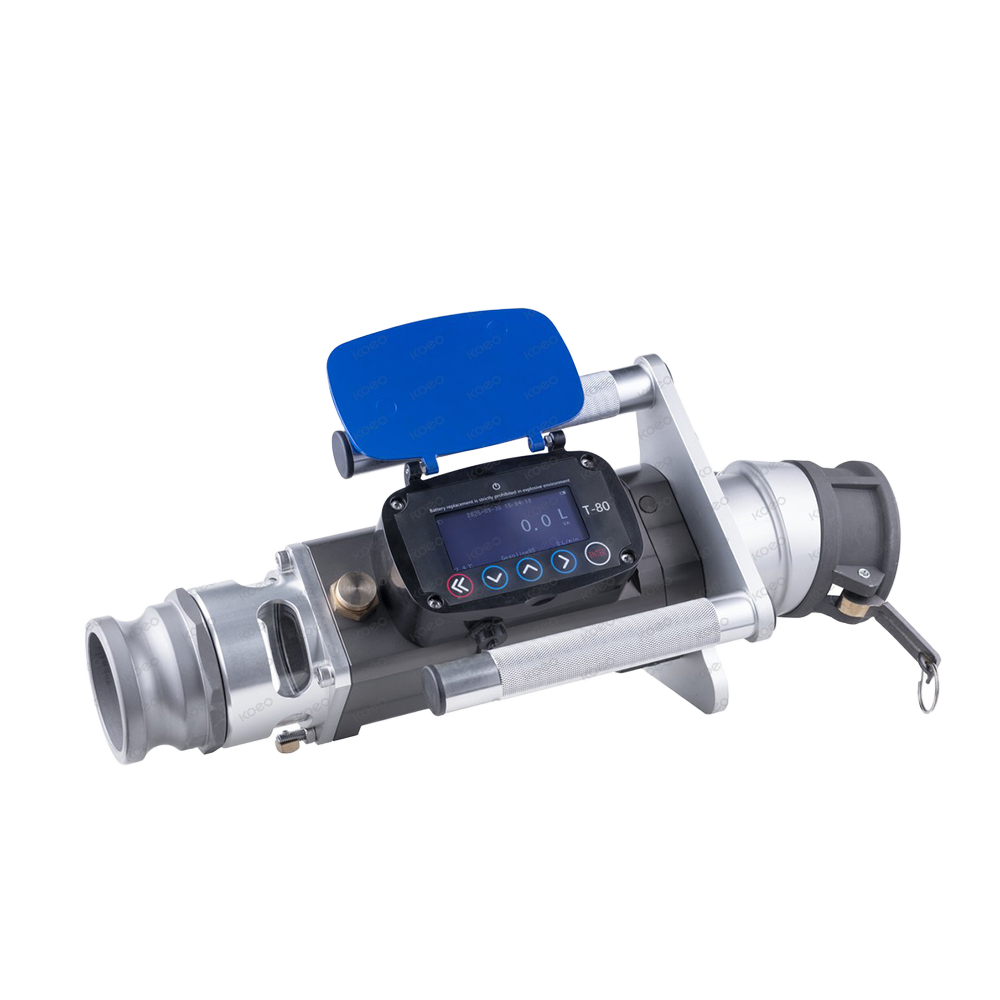

Gravity Unloading T-80 Flow Meter 2nd Generation
Design and Application:
The 3" turbine flow meter is suitable for mobile applications and boasts an ergonomic design with two non-slip handles, ensuring labor-saving operation.
Constitution:
3’’ turbine structure
Max flow rate: 1300L/min
Comes with liquid sensors for high accuracy
Temperature probe for monitoring under varying working conditions
Features:
● Product metering during delivery operations to gas stations
● Control for tank truck and rail car product reception
● Reduces the risk of fraud
● Supports partial or full compartment deliveries
● Measures product returns
Benefits:
● Quick and easy to use
● Mobile and autonomous
● Lightweight and compact design
● Supports multiple products
● No product retention
● Bluetooth connectivity for seamless data transfer
● Easy maintenance

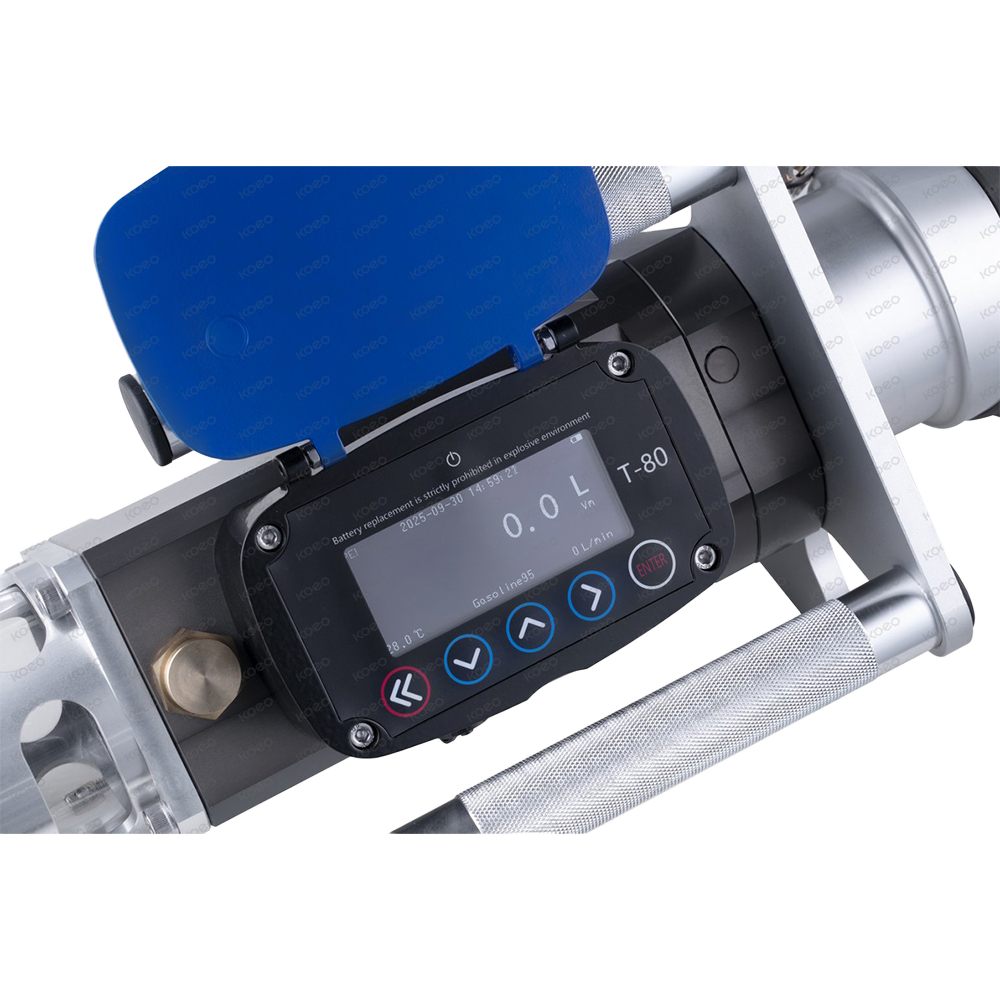

● Large, easy-to-read LCD screen
● Heavy-duty construction
● History data management for tracking
● Customized fluid parameters
● Temperature monitoring for precise measurements
|
Model |
T-80 |
| Application medium | Gasoline,Diesel,Kerosene,Jet and other petroleum products |
| LCD screen | English interface 7 digits display |
| Size | 3 inches (DN80) |
| Accuracy | +-0.2% |
| Repeatability | +-0.02% |
| Product Weight | 6kgs |
| Body Material | Aluminum |
| FlowRate range | 8-80m3/h(130-1300L/min) |
| Minimum scale | 1L |
| Ex-proof grade | Ex ia II BT4 Ga |
| Protection grade | IP67 |
| Temperature range | -25 Cto+55C |
| Maximum pressure | 0.5Mpa |
| Viscosity range | ≤13mm2/s |
| Power Supply | 2X3.6V Lithium batteries |
Coupling Inlet: 3 inch, 4 inch, 6 inch (optional)
Coupling Outlet: 3 inch, 4 inch (optional)
Adaptor for connection selection
The T-80 flow meter is engineered for reliability and precision, making it an essential tool for efficient fuel management in various applications.
