Electronic Oval Gear Oil Meter
OGM-15 is an electric oval gear meter suitable for monitoring the delivery of oils with a wide range of viscosity.
The meter is equipped with a digital display and it is also available in pulser version.
Koeo electronic oval gear meter OGM-15E,designed to measure lubricating oils.
Flow rate up to 30L/min. Accurate reading to +/- 0.5% with maximum pressure to 70Bar.
Suitable for monitoring the delivery of oils with a wide range of viscosity.
The meter is equipped with a digital display and it is also available in pulser version .
It can be used with Koeo oil nozzle K400.
1.Ready to use
2.Easy to calibrate
3.Double to talizer
4.Electronic reset function
5.High accuracy
6.Low battery consumption
7.Rubber protection
8.Adjustable unit of measurement
1.Size: 1/2″
2.Flow Rate: 1-30 L/min
3.Accuracy: +/- 0.5%
4.Pressure: 70 Bar
5.Temperature: -10°C → +50°C
6.Viscosity:2-2000 cSt
7.Mounting direction:vertical or horizontal
Connection Thread: BSPP(F)/BSPT(F)/NPT(F)

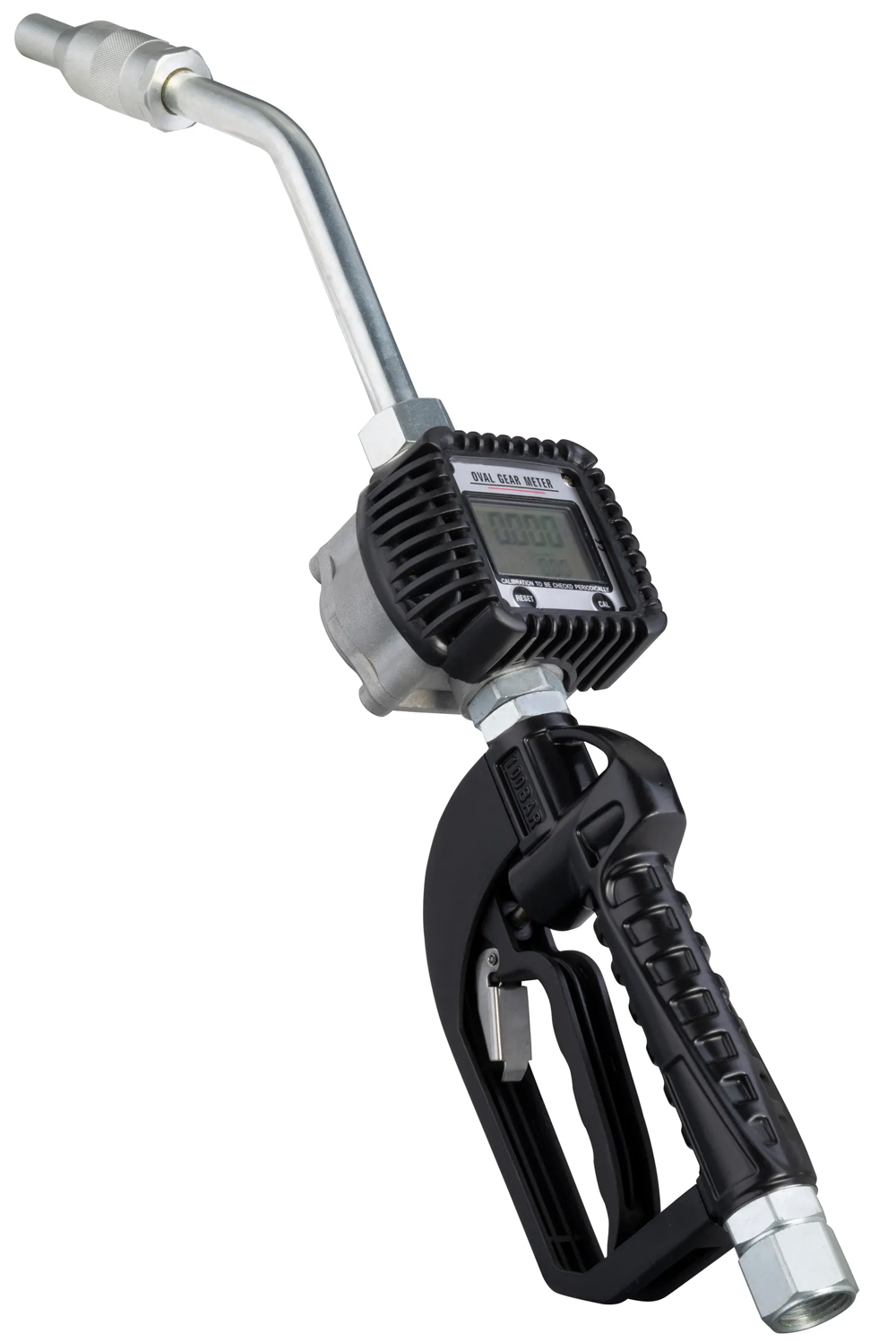

The Koeo new oil nozzle are the perfect tools for fluid control. The quality range includes metered and non-metered versions with flexible & rigid extensions, to give you exactly what you need to control your workshop automotive fluids. With a 1 year limited warranty, these oil nozzles are built for the toughest conditions to ensure you get the most out of your lubrication products.
