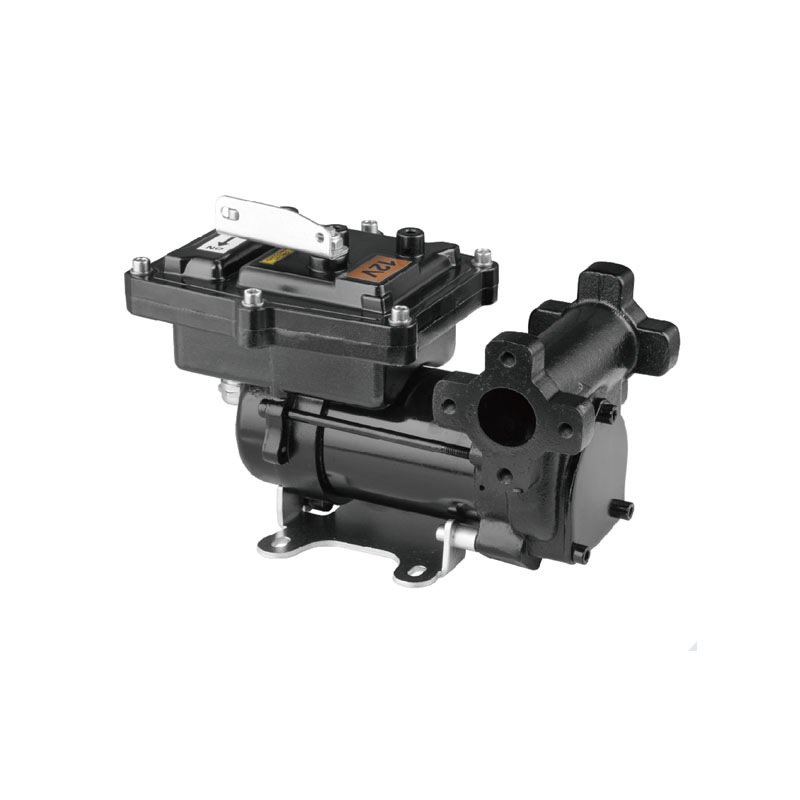

EX-50 13 GPM Ex-Proof Pump Optional thread and flange
The EX 50 is designed for the dispensing of gasoline, diesel and kerosene. It is a fuel pump designed to last longer and maintain higher flow rates when used with accessories that create resistance. Capable of delivering up to 50L/min 13 GPM at-the-nozzle.
Available in 12V and 24V options. Also available as a Transfer Pump Kit equipped with fuel nozzle, delivery hose, and optional meter and/or filter.
.Safety: explosion prevention, ensuring safe use in potentially explosive environments.
.Durable and Efficient: Compact cast iron body, built-in bypass valve, reinforced vanes, and anti-noise filter for long-lasting, low-noise operation.
.Comprehensive Kits: Basic Kit includes a pump, auto-nozzle, hose, and connector; Pro Kit adds a mechanical flow meter and optional filter.
.Technical Features: Designed to transfer flammable fluids with a built-in bypass valve and thermal protection for longevity and reliability,
.Both Thread and Flange installation are available
|
EX-50 |
|
|
Max. Flow Rate:50L/min(13Gal) |
Power:250w |
|
Outlet: 1"(25mm) |
Suction: 2m |
|
Inlet: 1"(25mm) |
Head:10m |
|
Voltage: 12V or 24V |
IP Class: IP65 |
