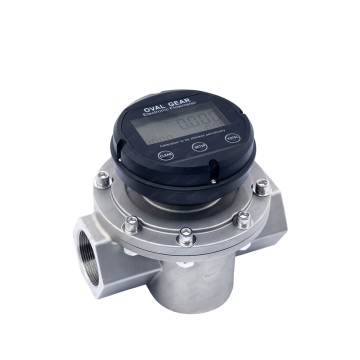

OGM-50ESS Stainless Steel Oval Gear Flow Meter-Electronic

OGM-50ESS Stainless Steel Oval Gear F...
Inline Filter (Aluminum) - Angle Fuel Filter

Inline Filter (Aluminum) - Angle Fuel...
CFD150-30 High Flow Rate Filter

CFD150-30 High Flow Rate Filter

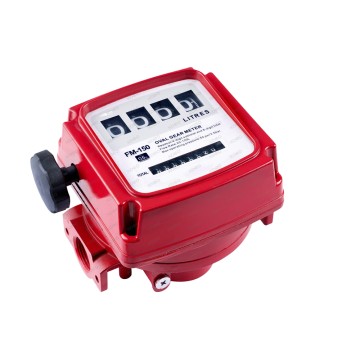

Red OGM Full-Aluminum Mechanical Meter FM-150

Red OGM Full-Aluminum Mechanical Mete...

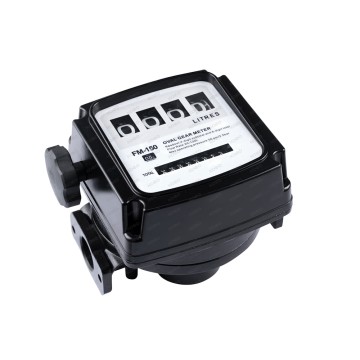

Black OGM Full-Aluminum Mechanical Meter FM-150

Black OGM Full-Aluminum Mechanical Me...

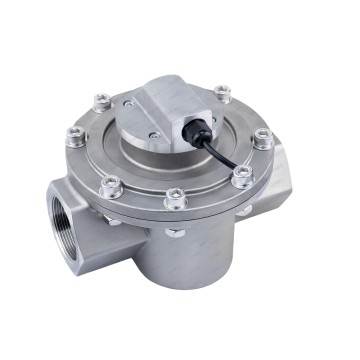

2 inch Stainless Steel Oval Gear Flow Meter

2 inch Stainless Steel Oval Gear Flow...
Gravity Unloading T-80 Flow Meter With Advanced Valve

Gravity Unloading T-80 Flow Meter Wit...
Gravity Unloading T-80 Flow Meter 2nd Generation

Gravity Unloading T-80 Flow Meter 2nd...
2nd Generation Gravity Unloading T-80 Flow Meter

2nd Generation Gravity Unloading T-80...
0102030405

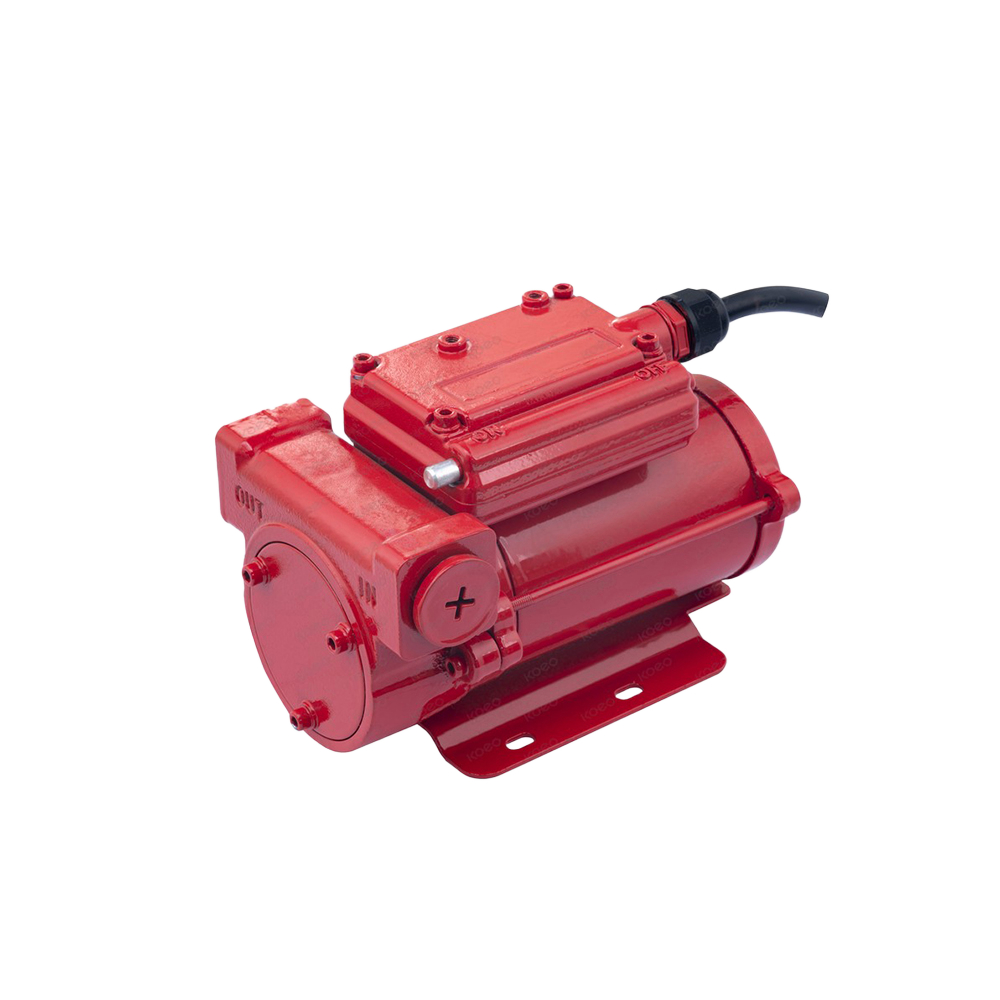

KEX-10 (1).jpg

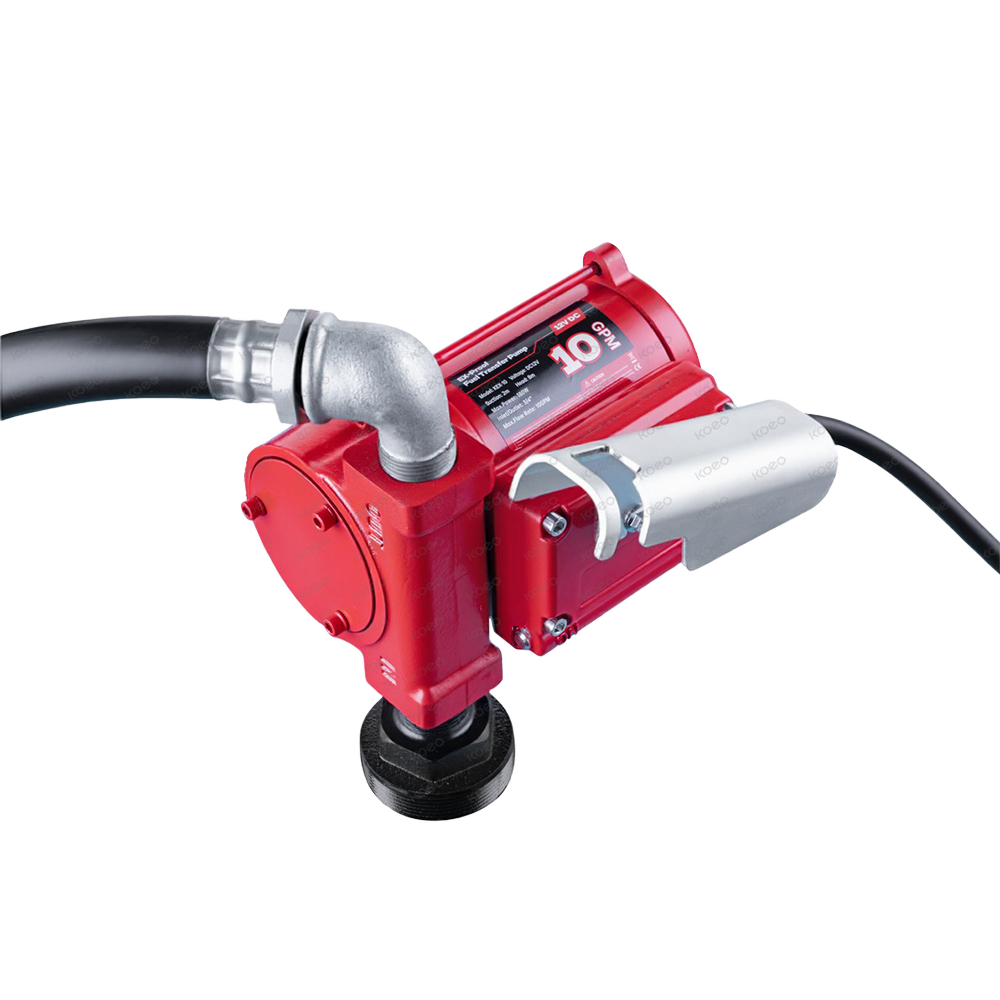

KEX-10 (2).jpg

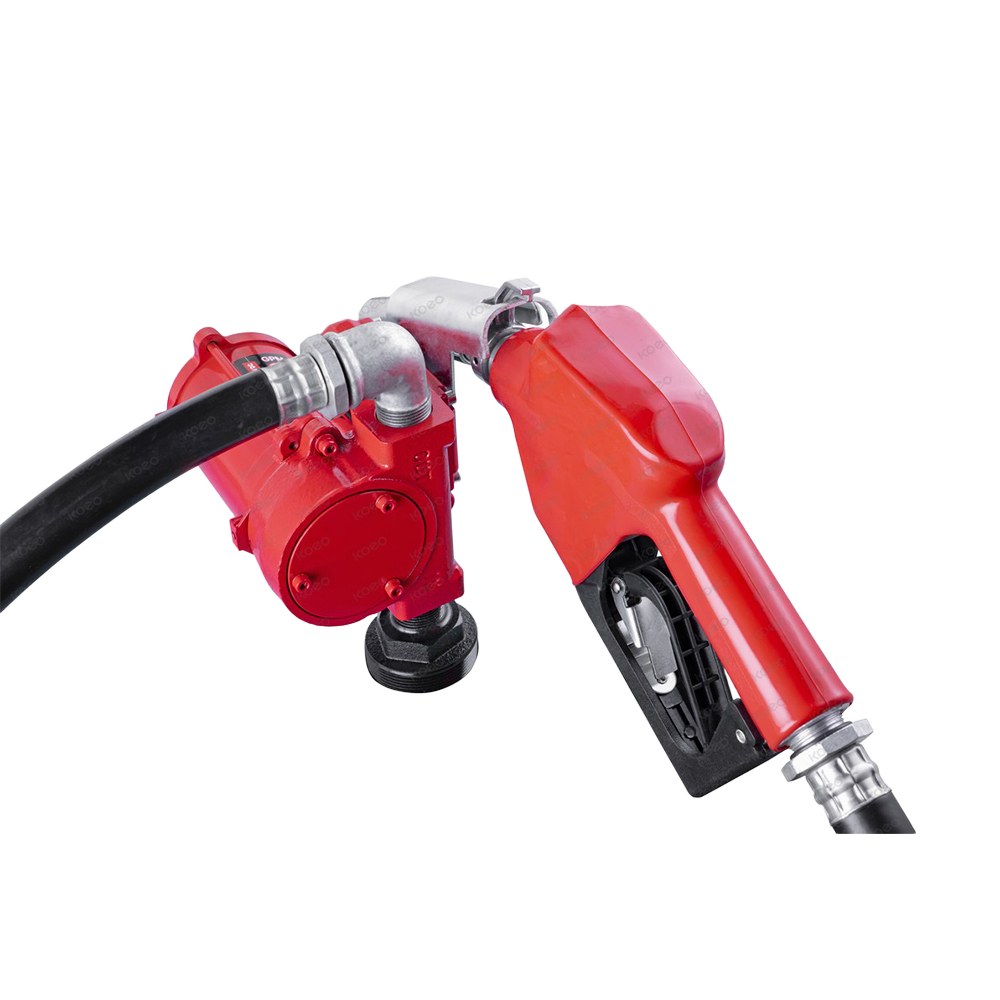

KEX-10 (3).jpg

KEX-10/15E DC Explosion-proof Fuel Transfer Pump

KEX-10/15E DC Explosion-proof Fuel Transfer Pump

The KEX-10/15E is a DC-powered explosion-proof fuel transfer pump designed for safe handling of gasoline, diesel, and kerosene in hazardous areas. Featuring ATEX/IECEx certification, self-priming capability (up to 2m), and a flow rate of up to 38L/min and 57L/min, it's ideal for drums, tank trucks, and mobile refueling. Built with cast iron housing and spark-free motor for maximum safety.

  • ATEX & IECEx certified explosion-proof motor – Safe for use in Zone 1/2 hazardous environments with flammable fuels.
  • Dual voltage 12V / 24V DC operation – Compatible with vehicles, generators, and portable power sources.
  • High flow rate up to 54L/min (15 GPM) – Fast and efficient fuel transfer from drums or tanks.
  • Self-priming up to 2 meters suction lift – No manual priming required; works directly from sealed containers.
  • Lightweight aluminum construction with thermal overload protection – Durable, portable, and safe for continuous operation.
  • Model KEX-10 & KEX-15E
  • Powel 180W & 220W
  • Flow Rate 10GPM(38LPM) & 15GPM(57LPM)
  • Voltage 12V/24V
  • Inlet 3/4"
  • Outlet 3/4"
  • Structure Vane
Contact us
Feature
Description
Specifications
Option Fittings
Accessories
download
Optional Kit Accessories:
.Filter
.Flow meter
.Nozzles: Manual or Automatic Shut-off fuel nozzle, Rubber delivery hose,Telescopic oil suction pipe, mounting on drum or storage tanks

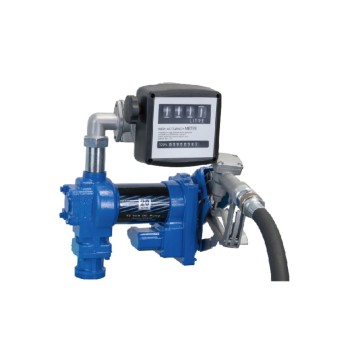

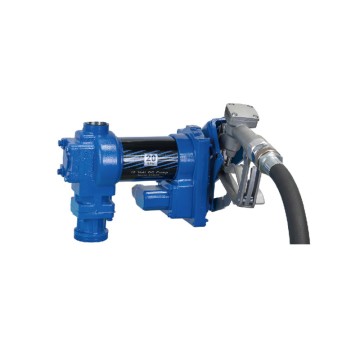

Model

KEX-16

KEX-20

Max.Flow Rate

60L/min(16Gal)

75L/min(20Gal)

Outlet

3/4"(19.05mm)

1"(25mm)

Inlet

1"(25mm)

Voltage

12Vor 24V

Power

400W

Suction

2m

Head

10m

IP Class

IP65
