M-150 Meter with Mechanical Register
| Basic Data |
| Maximum pressure:10.5Bar |
| Volume per revolution:14.87L |
| Inlet/Outlet Dia:6"or 4"flange for option |
| Package:wooden case |

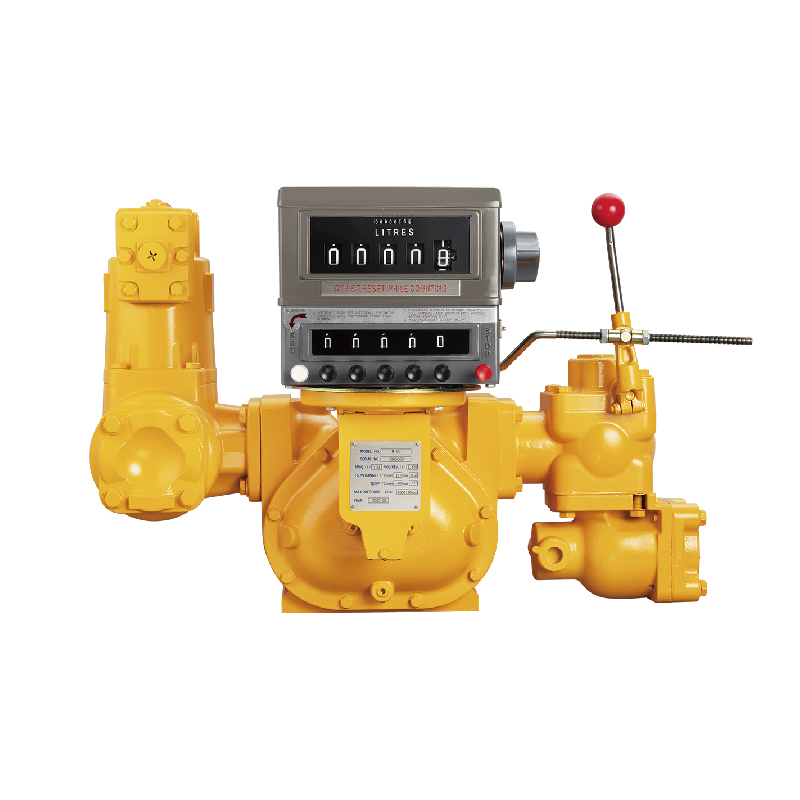

M-80 Meter with Manual Preseter Meter and Mechanical Register
| Feature | Basic Data |
| The comined Manual preseter and mechanical register are ideal for situation where basic stand-alone metering is required or where the site or environment doesn't readily support the installa-tion of more complex electronic registers and control systems as one of the main benefits is that no power is required to run the mechanical head. Enables you to select and automatically control Preset Valve closure so that an exact predeter-mined volume will be delivered. | Maximum pressure:10.5Bar |
| Volume per revolution:1.839L | |
| Body:Alloy Aluminum | |
| Inlet/0utlet Dia:3” | |
| Package：wooden case |

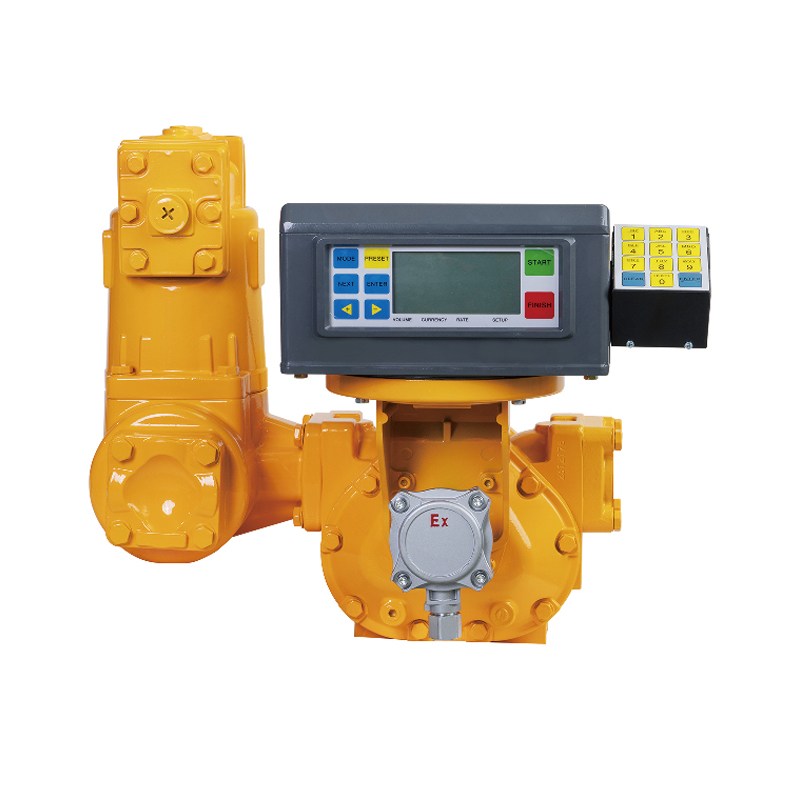

M-50 Meter with Electronic Register
| Feature | Basic Data |
| ·Ensure High accuracy with Electronic Register | Maximum pressure:10.5Bar |
| ·Fueling with preset | Volume per revolution:0.681L |
| ·Can be connected with ticket printer | Inlet/Outlet Dia:2” |
| ·Can be connected with Solenoid Valve | Package wooden case |
| ·Auto calibration |

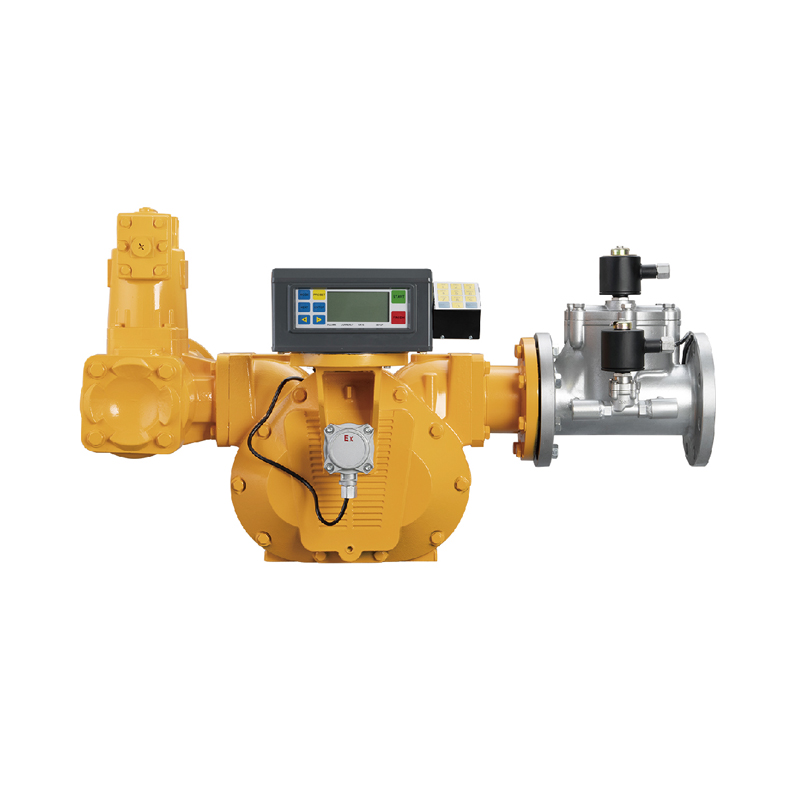

M-100 Meter with Electronic Register,Solenoid Valve
| Feature | Basic Data |
| ·Ensure High accuracy with Dual-flow Solenoid Valve | Maximum pressure:10.5Bar |
| Volume per revolution:5.102L | |
| ·Fueling with preset | Inlet/Outlet Dia:4" |
| ·Can be connected with printer | Valve:Stainless Steel Dual-flow |
| Piston Solenoid Valve | |
| ·Auto calibration | Voltage:AC220V/50HZ,DC 12V/24V |
