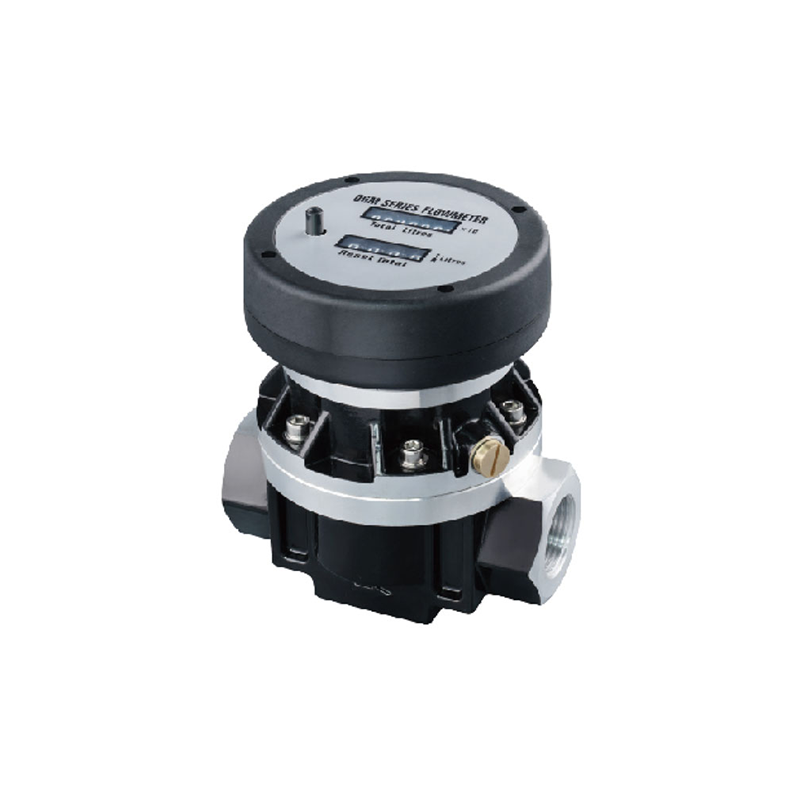

OGM A series Mechanical Oval Gear Flow Meter
The OGM Series offers ±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.Oval Gear flow meters are perfectly suited for applications demanding precise dispense quantities. They excel in measuring very low flow rates, handling pulsating flows, managing small batch sizes, and accurately metering viscous and non-conductive liquids.
·Wide flow ranges
·High accuracy
·Low pressure drop
·Calibration function with seal
| Model |
OGM-25A |
OGM-40A |
OGM-50A |
| Flow Rate |
20-120L/min |
25-250L/min |
30-300L/min |
| Inlet/Outlet |
1"(25mm) |
1.5"(40mm) |
2”(50mm) |
| Accuracy |
±0.5% |
||
| Repeatability |
0.0003 |
||

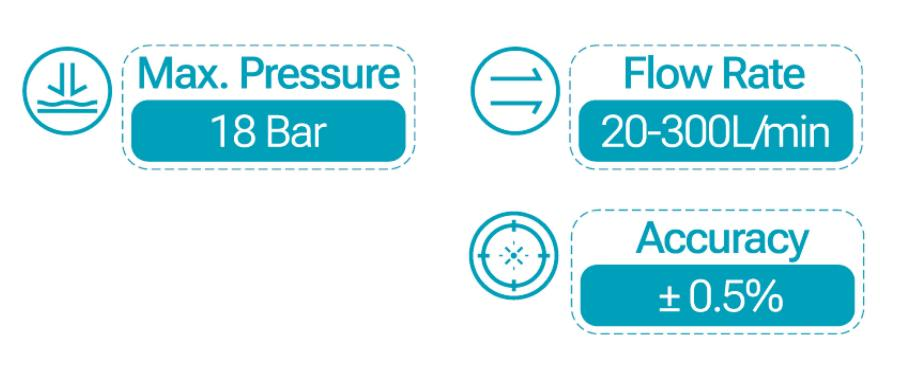

| Max. Pressure |
18Bar |
||
| Max.Viscosity |
1000cps |
||
| Unit |
Liters or US. Gallon |
||
