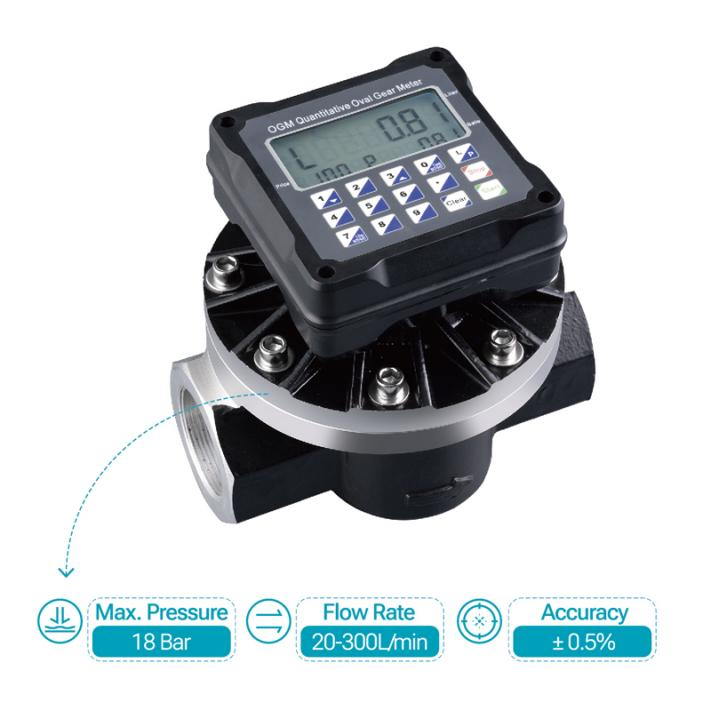

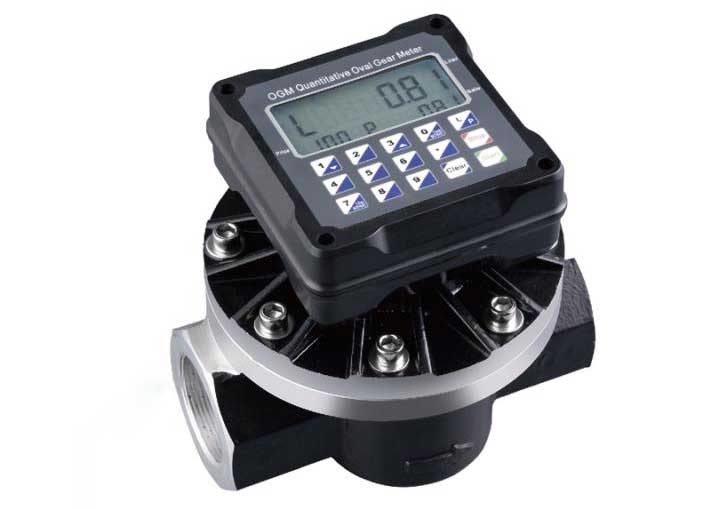

OGM Q series Preset Oval Gear Fow Meter
·Allows pre-setting of the fuel amount, enabling automatic shutoff
.Wide flow ranges
.Significantly lower cost of ownership
. Field maintainable
. Simple operation, easy to install and maintain
| Model | OGM-25Q | OGM-40Q | OGM-50Q |
| Flow Rate | 20-120L/min | 25-250L/min | 30-300L/min |
| Inlet/Outlet | 1"(25mm) | 1.5"(40mm) | 2”(50mm) |
| Accuracy |
±0.5% |
||
| Repeatability |
0.0003 |
||
| Max. Pressure |
18Bar |
||
| Max. Viscosity |
1000cps |
||
| Unit |
Liter |
||
