YB Series Pump Kit-Belt Driving

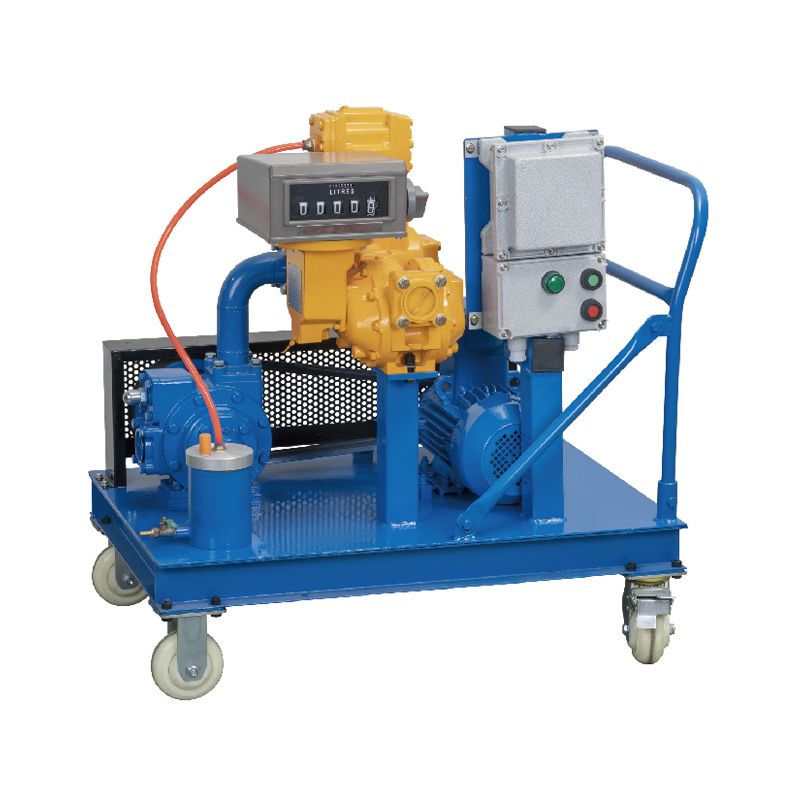

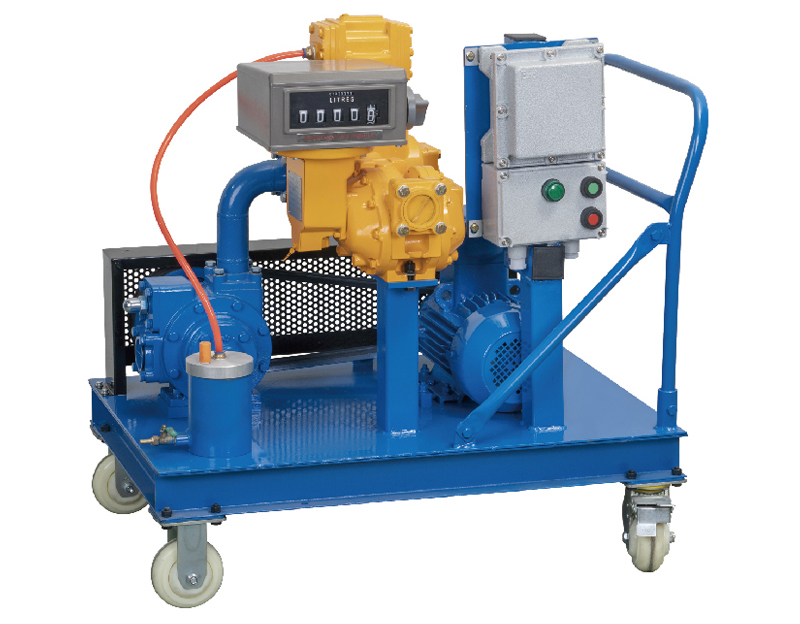

Mobile Fueling Cart-Belt Driving
The YB Series Rotary Sliding Vane Pump Cart with belt drive is designed for efficient and reliable fluid transfer.This setup includes a robust pump,a precise positive displacement flow meter,and a dependable electric motor,all mounted on a four-wheeled platform for easy mobility.The belt-driven mechanism ensures smooth and steady operation,making it ideal for various industrial applications.
Mobile Fueling Cart-Belt Driving Feature
·Integrated System:Combines a pump,positive displacement flow meter,and electric motor in one convenient cart for efficient fluid transfer.
·Portability.Four-wheel design for easy transport and maneu-verability across different job sites.
·Belt-Driven Mechanism:Ensures smooth operation and
reduces mechanical vibration,resulting in quieter perfor-mance.
·Accurate Flow Measurement:The positive displacement flow meter provides precise readings,enhancing control and efficiency.
·Durable Construction:Built to withstand harsh conditions, ensuring long-lasting performance and minimal maintenance.
·User-Friendly Maintenance:Easy access to components for quick and simple servicing,reducing downtime.

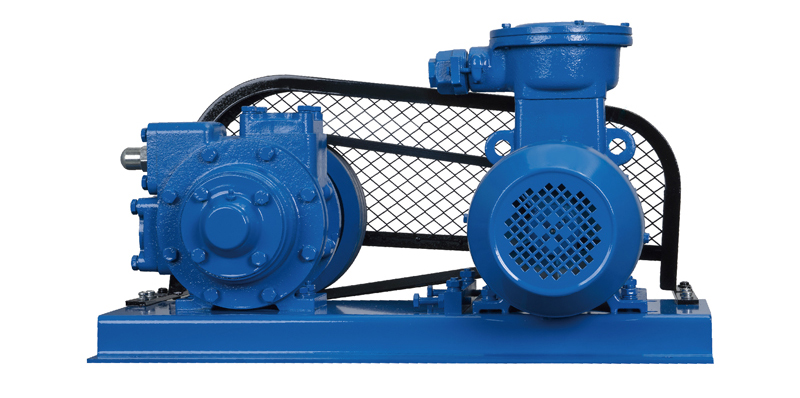

YB Series Pump Kit-Belt Driving
| Model | Diameter | Motor Power | Flow Rate@650rpm L/min (Gal/min) |
| YB50 kit-B | 2" | 2.2Kw | 300 (79.3) |
| YB65 kit-B | 2.5" | 4Kw | 500(132.1) |
| YB80 kit-B | 3" | 7.5Kw | 1000 (264.2) |
Mobile Fueling Cart-Belt Driving
| Model | Diameter | Motor Power | Max Flow Rate@650rpm L/min (Gal/min) |
| YB50 Cart-B | 2" | 2.2Kw | 300 (79.3) |
| YB80 Cart-B | 3" | 4Kw | 1000(264.2) |
