YB Series Pump Kit-Shaft Coupling

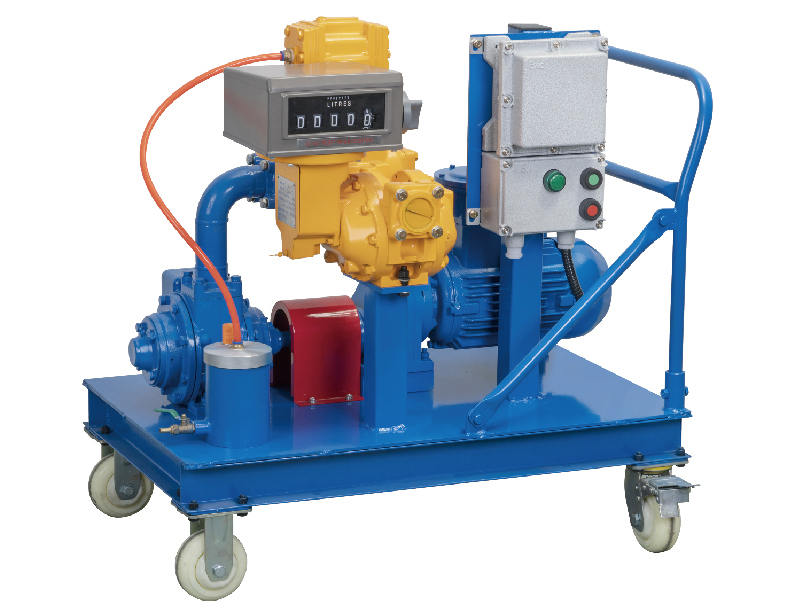

Mobile Fueling Cart-Shaft Coupling Driving
The YB Series Rotary Sliding Vane Pump Cart with shaft coupling drive is designed for efficient and reliable fluid transfer.This setup includes a robust pump,a precise positive displacement flow meter,and a dependable electric motor,all mounted on a four-wheeled platform for easy mobility.The shaft coupling-driven mechanism ensures smooth and steady operation,making it ideal for various industrial applications.
Mobile Fueling Cart-Shaft Coupling Driving Feature
·Integrated System:Includes a pump,positive displacement flow meter,and electric motor in a single,portable unit for comprehensive fluid transfer.
·Portability:Designed with four wheels for easy movement and flexibility in various working environments.
·Coupling-Driven Mechanism:Provides direct power transfer for enhanced efficiency and performance.
·Accurate Flow Measurement:The liquid controls type positive displacement flow meter offers precise and reliable flow measurement.
·Rugged Construction:Engineered to endure tough working conditions,ensuring longevity and dependable operation.
·Ease of Maintenance:Simplified design for quick and easy maintenance,minimizing operational interruptions.

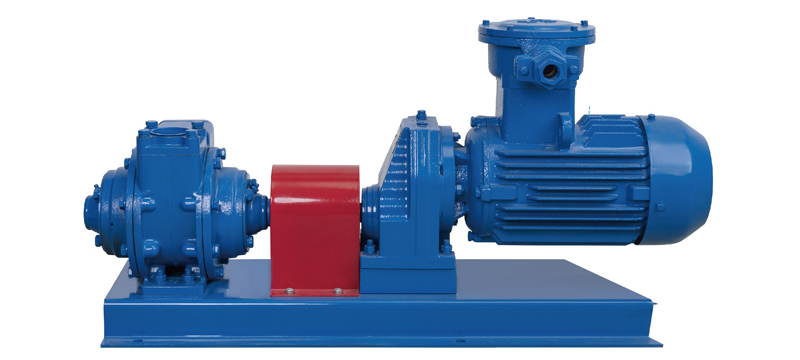

YB Series Pump Kit-Shaft Coupling
| Model | Diameter | Motor Power | Flow Rate@650rpm L/min (Gal/min) |
| YB50 kit-C | 2" | 2.2Kw | 300 (79.3) |
| YB65 kit-C | 2.5" | 4Kw | 500(132.1) |
| YB80 kit-C | 3" | 7.5Kw | 1000 (264.2) |

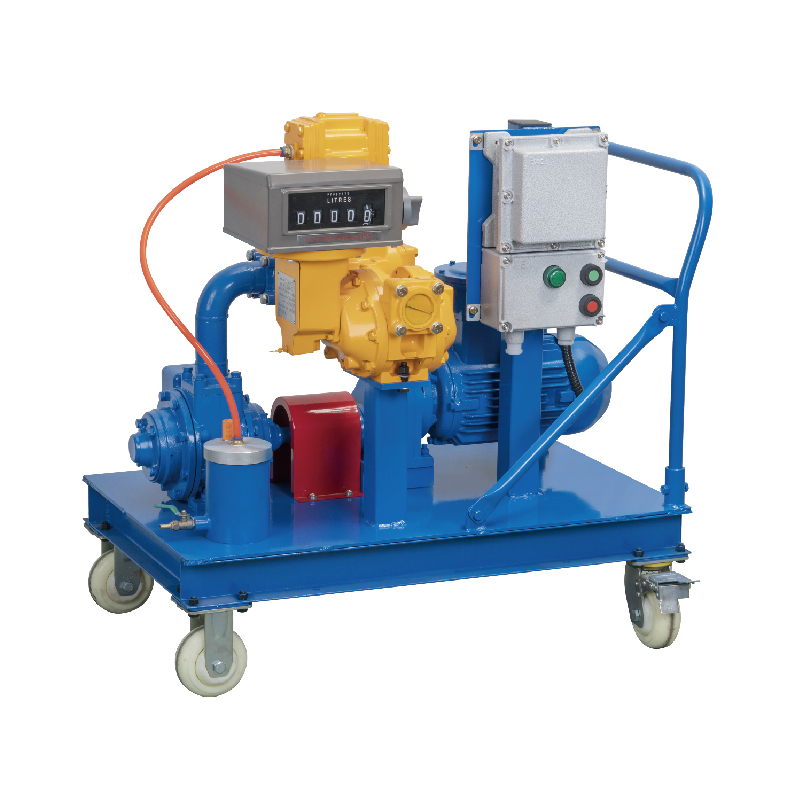

Mobile Fueling Cart-Shaft Coupling Driving
| Model | Diameter | Motor Power | Max Flow Rate@650rpm L/min (Gal/min) |
| YB50 Cart-C | 2" | 2.2Kw | 300 (79.3) |
| YB80 Cart-C | 3" | 4Kw | 1000(264.2) |
